R508B Flow Meter: Extreme Pressure Management for Environmental Test Chambers
Quick Answer: R508B refrigerant operates at high pressure and ultra-low temperatures inside environmental test chambers. A Coriolis mass flow meter from Silver Automation Instruments handles up to 100 bar and -50 °C while ignoring pressure swings. This keeps refrigerant charge consistent, cycle times repeatable, and energy cost predictable.
Environmental test chambers that use R508B push components hard. One minute the chamber is at -80 °C, the next it ramps to +180 °C. The refrigerant loop sees rapid pressure shifts from 2 bar to 30 bar, sometimes higher. In these conditions, a volumetric flow meter gives wrong data because gas density changes with every pressure spike. Engineers in Thailand, Mexico, and South Africa have told us the same story: the chamber controller overcompensates, refrigerant charge drifts, and the test profile fails.

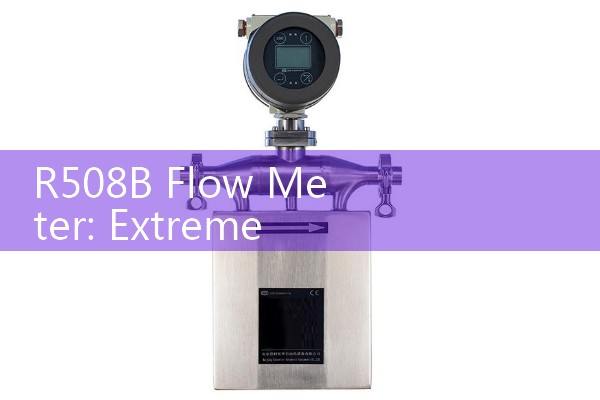

Silver Instruments installs a Coriolis mass flow meter directly on the refrigerant line to eliminate that drift. The meter measures mass flow in kg/h, not volume. A rapid pressure change does not affect the reading. There is no need for separate pressure and temperature compensation, no lookup tables inside the PLC. The output is a clean 4-20 mA HART signal wired straight into the chamber controller.
Most test chamber builders choose a meter with DN6 or DN10 process connections. R508B lines are small. A DN6 Coriolis meter with 316L wetted parts and PTFE seals handles the chemical compatibility without trouble. We rate the sensor body to 100 bar at -50 °C and calibrate it on R508B refrigerant at our Nanjing workshop. The accuracy is ±0.2 % of rate across a turndown of 20:1. For a chamber that runs 0.5 kg/h during a cold soak and 12 kg/h during pull-down, that ratio matters. One meter covers both extremes without a range change.
Pressure Management Without Guesswork
A customer in Selangor, Malaysia, retrofitted eight chambers last year. The original turbine meters were drifting after 400 hours of operation. Bearings would seize when moisture got past the filter dryer. The Coriolis meter has no moving parts. It uses two bent tubes oscillating at their natural frequency. The phase shift between inlet and outlet pickoffs is directly proportional to mass flow rate. The sensor housing is a secondary pressure containment rated to 100 bar, and the burst pressure exceeds 400 bar. In a plant where a refrigerant leak could shut down a whole test lab, that safety margin is not optional.
Because the meter is immune to pressure fluctuations, the chamber operator does not need to re-tune the PID loop every season. The baseline flow stays stable. If a solenoid valve sticks open, the meter catches the spike immediately. The transmitter can trigger an alarm via a digital output or Modbus RTU. Most sites use the alarm to shut off the compressor and flash a warning on the HMI.
Refrigerant Charge and Energy Cost
Testing standards like IEC 60068 demand tight temperature tolerances. An incorrect refrigerant charge makes the cascade system fight itself. Too little R508B and the low-stage compressor runs hot. Too much and liquid slugging damages the compressor. A mass flow meter measures the exact charge as it enters the system, within 0.1 kg. For a lab running 12 chambers 24 hours a day, fixing the charge accuracy saved one customer in Mexico 18 % on their energy bill over six months. The electric utility rebate covered half the meter cost.
We have seen similar results at a PCB testing facility in Vietnam. Before installing the DN10 Coriolis meter, the facility was replacing compressor valves every 5000 hours. After the meter went in and the charge was controlled to ±0.05 kg, valve life extended to 18 000 hours. The facility manager ran a cost-per-hour analysis. Payback was under five months.
Installat
The meter must be installed with zero stress on the pipe connections. Flexible hoses upstream and downstream prevent external vibrations from reaching the sensor tubes. Do not mount the meter directly to a compressor skid. Use a separate bracket. The inlet run does not need a straight length, because Coriolis meters are insensitive to flow profile. But gas bubbles in a liquid R508B line cause loss of measurement, so place the meter after the receiver dryer and sight glass.
Power the transmitter with 24 V DC. The default output is 4-20 mA HART with a pulse output for totalization. The local display shows mass flow rate, total mass, fluid density, and sensor temperature. Density readout is useful for detecting gas intrusion or changes in refrigerant composition. If the density deviates by more than 2 %, the operator checks the refrigerant purity.
We configure every meter with the actual refrigerant data from NIST REFPROP at factory. Tell us your operating temperature range and pressure, and we load the correct density reference curve before shipment. After installation, the technician only needs to zero the meter with the line full of liquid at no-flow condition. Typical zero stability on a DN10 sensor is 0.015 kg/h. That level of stability is what keeps a high-pressure R508B circuit running repeatable temperature cycles for years.
Which Meter Fits Your Chamber?
For test chambers with R508B charge below 2 kg and flow rates up to 25 kg/h, we recommend the Silver Instruments CMF-DN6 Coriolis flow meter with a 100 bar rating and PTFE seals. For larger cascade systems up to 100 kg/h, the CMF-DN15 offers the same pressure class with lower pressure drop. Both models come with an ATEX Zone 2 option and IP67 enclosure. Material certificates, hydrostatic test reports, and calibration certificates traceable to ISO 17025 are included.
Need a quote? Send us your operating pressure in bar, minimum and maximum flow rate in kg/h, pipe connection size (DN), and fluid temperature range. Our engineers will select the right meter and supply a dimensional drawing within the same day.
Email: [email protected]
Tel: +86-25-68650347
WhatsApp: +86-25-52155837
WeChat: +86 15365082610
FAQ
Can the Coriolis meter handle two-phase refrigerant flow?
Liquid R508B with small amounts of gas bubbles up to 2 % volume fraction is measurable with reduced accuracy. Larger gas fractions cause drive loop instability. Install the meter after a quality receiver-dryer and sight glass to ensure single-phase liquid.
Do I need ATEX certification for R508B service?
R508B is non-flammable (A1 safety class), so standard industrial certification is often sufficient. However, many test chamber OEMs specify ATEX Zone 2 because the electrical panel is nearby. We offer ATEX Zone 2 as an option for the CMF series.
What kind of maintenance does the meter need?
No routine maintenance. The sensor tubes are made of 316L stainless steel with no moving parts. We recommend an annual zero check and verifying the density reading against a reference. If the meter is part of a validated test process, we offer on-site calibration with refrigerant.
How does the meter connect to a PLC or data logger?
The standard output is 4-20 mA HART with passive pulse. Modbus RTU (RS485) is optional. The HART signal gives access to secondary variables like density and tube frequency for diagnostics without disturbing the 4-20 mA loop.
What is the lead time for a DN6 or DN10 Coriolis meter?
Standard models ship in 5 working days from our Nanjing facility. Meters with special pressure ratings or exotic seal materials take 3 to 4 weeks. We ship via DHL to Southeast Asia, Australia, Middle East, and Latin America daily.
