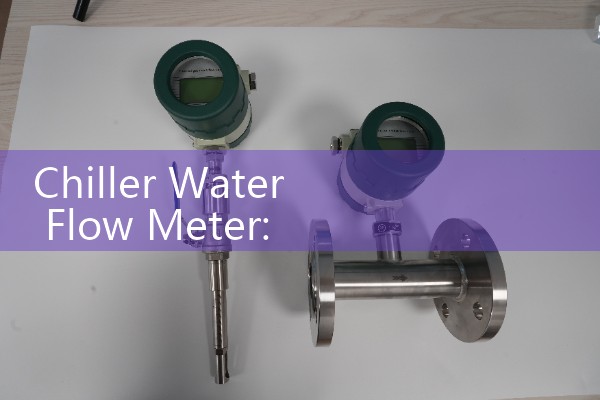

Chiller Water Flow Meter: Protecting Industrial Cooling Loops with Telemetry
Quick Answer: A chiller water flow meter tracks live flow in closed cooling loops. Silver Instruments supplies electromagnetic and ultrasonic meters with 4-20 mA HART and Modbus outputs for DN15 to DN300 lines. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a fixed quote.
Cooling loops fail quietly. A chiller can run for weeks with low water flow until a compressor overheats or a mold cools unevenly. Most plants only notice after production stops. We have seen this on customer sites many times.
In practice, a flow meter on the chiller water supply or return line gives early warning. The right meter sends live data to a PLC, a building management system, or a remote telemetry dashboard. That turns a hidden cooling fault into a number you can act on.
Why Chiller Water Flow Data Matters
Chiller water flow drops for simple reasons. A strainer clogs. A valve is half closed. A pump impeller wears. A flexible hose kinks. Each fault reduces heat transfer and raises energy cost per kW of cooling.
A food plant in Vietnam ran a 200 kW chiller for three months with flow 18 percent below design. The chilled water supply temperature looked normal. The evaporator pressure was not. Their maintenance team found the problem only after the chiller tripped at night. A low flow alarm would have flagged the issue weeks earlier.
Most engineers skip this part because chillers have built in temperature sensors. Temperature alone cannot tell you if the loop is losing flow until the load changes. A drop from 30 m3/h to 25 m3/h does not always shift supply temperature fast. But it does raise compressor lift and power draw.
Flow Meter Options for Chilled Water
Electromagnetic flow meters are the first choice for closed loop chiller water. They have no moving parts, no pressure drop, and work with clean water if conductivity is above 20 µS/cm. Glycol mixtures usually have enough conductivity. Silver Instruments supplies the MF-EM series in DN15 to DN300 with PTFE or rubber liners.
Ultrasonic clamp on flow meters make sense when you cannot cut into an existing line. They strap onto steel or copper pipe. Accuracy is lower than electromagnetic, but installation takes one hour. We recommend clamp on meters for retrofit sites in Singapore or Malaysia where shutdown windows are short.
Turbine and paddle wheel meters look cheap at first. They fail on dirty water or scale. One customer in the Philippines replaced plastic paddle wheel sensors twice in one year because iron oxide particles wore the rotor. The third replacement cost more than one electromagnetic meter.
Telemetry Signals That Work in the Field
For chiller water flow, we recommend 4-20 mA HART as the standard analog output. Connect it directly to a PLC or chiller controller. Add RS485 Modbus RTU when you want flow rate, totalizer, and diagnostic status from multiple meters on one bus. This setup works well in data centers and district cooling plants.
Pulse output is fine for total flo
Some sites need remote access without wiring. A telemetry module can send flow data to a cloud dashboard over 4G or Ethernet. We supplied meters with built in RS485 to a customer in Qatar who monitors six chillers from one control room.
Installation Points and Pipe Runs
Install an electromagnetic flow meter on the return line or the supply line. The return line has more stable temperature. Both locations work if the pipe stays full. Mount the meter in a straight run. We recommend 5 pipe diameters upstream and 3 downstream for electromagnetic meters.
Avoid air bubbles. Chilled water systems still pass small bubbles after startup. Install the meter at a low point or in a downward flow section if possible. We have seen this in a plastic injection plant in Indonesia where the meter was mounted right after a riser. Moving it 2 meters downstream solved the instability.
Pipe size matters. A 100 kW chiller may use a DN80 line. A 500 kW chiller may use DN150. Send us your line size and duty. We will check flow velocity and recommend a meter size that stays between 0.5 and 5 m/s.
Chiller Water Flow Meter Price and Contact
A DN50 electromagnetic flow meter with 4-20 mA HART may cost around USD 480 to 680 from a factory supplier. A DN100 unit with PTFE liner and Modbus may run USD 700 to 950. Fixed clamp on ultrasonic meters are cheaper in large pipe sizes above DN200.
Do not buy only on price. Check the liner material and electrode material. 316L electrodes work for most chiller water. For seawater cooling loops, use titanium. Also confirm pressure rating. Most HVAC lines are PN16. Industrial chiller loops can reach PN25.
Silver Automation Instruments supplies chiller water flow meters from stock for common sizes DN25, DN40, DN50, DN65, DN80, DN100, and DN150. Larger sizes ship in 7 to 12 days. Contact Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will return a data sheet and fixed price.
FAQ
Can a chiller water flow meter work with glycol?
Yes, most electromagnetic meters work with 20 to 40 percent glycol if liquid conductivity is above 20 µS/cm.
What is the best flow meter for a chiller line?
An electromagnetic flow meter is best for most closed loop chiller water systems. Use an ultrasonic clamp on meter when pipe modification is not possible.
Does a chiller flow meter need straight pipe run?
Yes. Use 5 diameters upstream and 3 diameters downstream for electromagnetic meters.
Can you monitor chiller water flow remotely?
Yes. Use 4-20 mA HART to a local PLC or RS485 Modbus RTU to a telemetry module. Data can go to a cloud dashboard over 4G or Ethernet.
What information do you need for a chiller water flow meter quote?
Send your pressure (bar), temperature (°C), pipe size (DN), and flow range. Also tell us the output signal and whether you need a local display.
