Lubricating Oil Flow Meter for 10 L/min Applications
Quick Answer: For a lubricating oil flow rate of 10 L/min, an oval gear flow meter is the most reliable choice. It handles medium to high viscosity oils from 5 cP to over 2000 cP with ±0.5% accuracy. Silver Instruments supplies compact oval gear meters starting from DN4 to DN25, with 4-20 mA HART output and local display, ready for inline installation on lube oil skids and circulation systems.
Measuring lubricating oil at 10 L/min sounds simple. Until you deal with viscosity changes on a cold morning startup. Or until air bubbles from a half empty tank hit the sensor. Most engineers learn this the hard way on site.
We supply flow meters to lube oil blending plants in Malaysia, marine engine test benches in Turkey, and hydraulic power pack manufacturers in South Africa. The flow rate often sits right around 10 L/min on a return line or a pump discharge test point. Getting a repeatable reading matters more than peak accuracy on paper.
Here is what actually works in the field. Not in a lab datasheet comparison.
Why Oval Gear Meters Win for Lube Oil at Low Flow Rates
Turbine meters struggle with viscous oil. The blade speed drops and linearity falls apart below 20 cSt. Coriolis meters work beautifully but a DN15 Coriolis for a 10 L/min lube oil line costs three to four times more than an oval gear meter. Ultrasonic clamp on meters need a clean pipe wall and fully developed flow profile. Lube oil circuits rarely give you that.
Oval gear meters use two precision rotors that mesh inside a measuring chamber. Each pocket of oil trapped between the rotor and chamber wall represents a fixed volume. At 10 L/min, a DN10 oval gear meter from Silver Instruments rotates at around 400 to 600 pulses per liter. The pulse train goes straight into a PLC or a local batch controller.
Viscosity actually helps an oval gear meter. The oil film seals the clearance gap between rotor tips and chamber walls. At 68 cSt or 150 cSt, the leakage slip is negligible. You get repeatability within ±0.1% on a steady lube oil circulation loop. We have seen this on a test rig in a hydraulic oil filtration plant in Vietnam. The customer ran ISO VG 68 turbine oil at 8 L/min to 15 L/min. Flow totalizer drift over one eight hour shift was less than 0.3 liters.
10 L/min is Not Always 10 L/min: Viscosity and Temperature Matter
Lubricating oil viscosity changes with temperature. A gearbox oil rated ISO VG 220 at 40°C behaves very differently at 25°C on a morning shift in a cold climate. At 10°C, the same oil might hit 800 cSt or more.
In practice, an oval gear meter sized for 10 L/min at operating temperature handles this. The pressure drop increases in cold start conditions but the meter does not stall. Silver Instruments oval gear meters use PPS rotors with stainless steel or anodized aluminum housings. PPS expands minimally with temperature. The metrology stays stable from 0°C to 80°C process temperature.
One customer in Chile measures diesel engine lube oil consumption on a mining truck fleet. The return line flow sits at 10 L/min when the engine is hot. At cold crank, the meter sees higher viscosity and lower flow. The 4-20 mA signal fed to the onboard telemetry unit still gives a coherent trend. No flow straighteners needed upstream. No Reynolds number compensation table.
Mechanical Design Details for Lube Oil Service
Pipe size for a 10 L/min lube oil line is typically DN10 or ¼ inch. Sometimes DN15 with reduced flow velocity. Silver Instruments recommends the SIOG series oval gear flow meter in DN10 size for this application.
The standard connection is female NPT or BSP thread. We supply SAE flanged versions for hydraulic power units where the customer prefers O-ring face seals over tapered threads. The pressure rating is 40 bar standard, with an option up to 250 bar on special order with a thick wall cast steel housing.
Seals are FKM as standard. For synthetic ester based lube oils or high temperature applications above 120°C, PTFE or FFKM seals are available. The reed switch pulse output works with any PLC counter input. 4-20 mA HART output with integral display costs a small premium and makes field commissioning faster.
Most engineers skip the display and use a remote batch controller or flow computer. But on a standalone lube oil fill station, the local display shows real time flow rate and accumulated total. Operators trust what they can see.
When to Choose a Coriolis Meter Instead
Oval gear meters are not the right answer for every 10 L/min lube oil measurement point. If the oil contains abrasive particles from gear wear, the rotor edges will wear over time. A straight tube Coriolis meter has no moving parts in the flow path.
If the oil temperature exceeds 150°C, PPS rotors will deform. Silver Instruments supplies Coriolis meters rated to 350°C with all stainless steel wetted parts. Typical applications are thermal oil systems and heat transfer fluid loops.
If the process demands density measurement alongside flow rate, a Coriolis meter pro

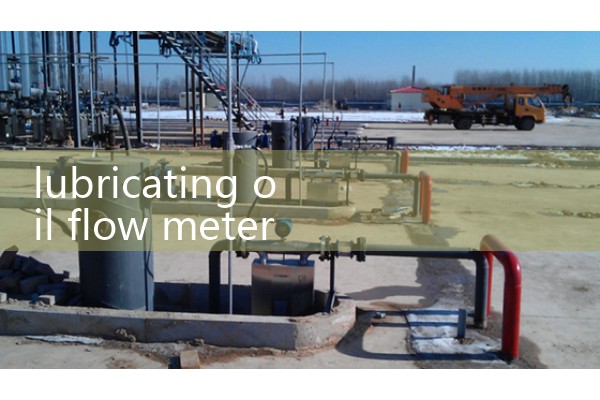

_600x400.jpg)
SIL Rating and HAZLOC Requirements for Lube Oil Skids
Lube oil systems on offshore platforms, gas compressor stations, and refinery rotating equipment often sit in ATEX Zone 1 or Zone 2 areas. Silver Instruments oval gear meters come with ATEX Ex ia certification. The reed switch is intrinsically safe with a suitable zener barrier or galvanic isolator.
For SIL 2 lube oil flow loops, we supply oval gear meters with dual pickup coils. Two independent pulse outputs go to a safety PLC with a 1oo2 voting architecture. The probability of failure on demand is documented in the FMEDA report. SIL 2 capability is enough for most lube oil safety functions. Full SIL 3 loops require additional diagnostics on the PLC side, not just the sensor.
Inline vs Bypass Installation on Lube Oil Return Lines
A common setup we see in cement plants and steel mills is a bypass loop. The main lube oil return line is DN40 or DN50. A small DN10 oval gear meter sits on a bypass branch with a needle valve to throttle flow to around 10 L/min. The meter measures a representative sample of the total return flow.
This works when the main line flow is too large for an inline meter or when the process cannot tolerate the pressure drop of a full bore meter. The disadvantage is that the bypass ratio assumes homogeneous flow. If air slugs or foam appear in the return oil, the bypass sample might be unrepresentative.
Inline installation directly in the DN10 or DN15 lube oil supply line is simpler. No bypass piping. No ratio calibration. The pressure drop across a DN10 oval gear meter at 10 L/min and 100 cSt is typically 0.1 to 0.2 bar. Most lube oil pump discharge pressures are 4 to 10 bar, so the loss is negligible.
Signal Integration and Remote Monitoring
Most customers connect the oval gear meter pulse output to a PLC, RTU, or a paperless recorder. Silver Instruments supplies pulse scalers and isolated converters that turn the reed switch signal into a clean 24 V square wave. The frequency at 10 L/min is typically 50 Hz to 150 Hz depending on the meter K factor.
If your SCADA system expects Modbus RTU, we add a flow totalizer with RS485 output. The totalizer stores the accumulated flow in a non volatile register. Power cycle the panel and the total holds. A paint manufacturer in Thailand uses this setup on 24 lube oil fill points. Each meter reports to a central remote I/O rack via Modbus. The totalized volume feeds into the ERP system for raw material reconciliation.
4-20 mA output is popular for simple loop powered installations. The pressure transmitter, temperature transmitter, and flow meter share the same 24 V DC bus. The analog signal goes direct to a DCS analog input card. No digital protocol configuration. Two wires. Clean signal. Maintenance technicians in oil terminals prefer this simplicity.
Common Questions Before Sizing a Lube Oil Flow Meter at 10 L/min
What pipe diameter should I specify for a 10 L/min lube oil flow meter?
DN10 or ¼ inch is the standard size. At 10 L/min, the flow velocity in a DN10 pipe is approximately 2.1 m/s. This is within the optimal range for oval gear meters and avoids excessive pressure drop. If your existing pipework is DN15, use a DN10 meter with reducers. The meter does not require long straight pipe runs upstream or downstream.
Will an oval gear meter work with ISO VG 320 gear oil?
Yes. ISO VG 320 oil has a kinematic viscosity around 320 cSt at 40°C. Oval gear meters perform very well in this viscosity band. The internal leakage slip is minimal. At 10 L/min, the pressure drop is still moderate. If the oil is cold and viscosity exceeds 1000 cSt, a pressure bypass valve across the meter may be needed to protect the rotors from overpressure during startup. We can supply an integrated bypass valve option.
What is the turndown ratio at 10 L/min?
For a DN10 oval gear meter, the typical measuring range is 0.5 L/min to 30 L/min. The turndown ratio is about 60:1 at constant viscosity. If your lube oil flow varies from 2 L/min at idle to 10 L/min at full load, the meter maintains ±0.5% accuracy across the range. Below 0.5 L/min, small leakage losses between rotor tips become a larger percentage of total flow. Accuracy degrades gradually, not suddenly.
Can I use a thermal mass flow meter for lube oil?
No. Thermal mass flow meters measure gas flow, not liquid flow. The insertion probe relies on heat dissipation in a flowing gas stream. Lubricating oil has a much higher thermal conductivity and viscosity. The sensor would saturate and give meaningless readings.
How do I get a price for a 10 L/min lube oil flow meter?
Send us your oil type (ISO VG grade or viscosity in cSt), operating temperature in °C, pipe size (DN), flow range inc
