1. Installation and Setting Guide for Plug in Thermal Mass Flow Meter

Installation and Setting Guide for Plug in Thermal Mass Flow Meter

1. Installation Position Selection To ensure measurement accuracy, corresponding upstream and downstream section lengths need to be reserved according to the following pipeline conditions. The specific installation position selection is shown in the figure:

2. Installation Requirements and Calculation Insertion Depth Drilling and Installation of Ball Valve: Drill a hole with a diameter of ≥ 13 mm on the pipeline and install a ball valve with an internal thread specification of G 1/2 ". Installation direction: The Mu Bichang plug-in thermal mass flowmeter can be installed in any direction, including horizontal, vertical, side, and inverted. Insertion depth calculation: It is recommended to use the center insertion method. Insertion depth=x+yx=OD/2 (OD is the outer diameter of the pipeline) y=height from the top of the pipeline to the ball valve Example: For a 2 "pipeline, if the ball valve height is 87mm and the OD is 60.3mm, the insertion depth is 30.15mm+87mm=117.15mm. For pipe diameters greater than 200mm, 100mm can be chosen as an alternative insertion depth.

Thirdly, ensure that the gas flow direction is consistent with the arrow direction on the flowmeter when installing at the alignment angle.

. The alignment angle deviation of the flowmeter should not exceed ± 2 °. The specific alignment angle requirements are shown in the figure:

4. Electrical connection. Open the back cover of the plug-in thermal mass flowmeter and connect it according to the diagram. The specific connection method and pin allocation are as follows:

5. Mobile APP con

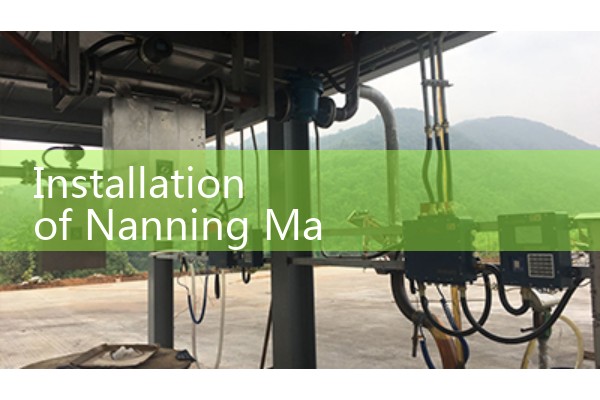

Installation of Nanning Quality Flow Meter

figuration (regular version) Download S4C-FS App: Android phones can download it through the specified link, and iOS phones can search for S4C-FS in the app store for download. Scan the QR code to obtain configuration permissions: Start the S4C-FS software and display all powered and unconnected flow meters. Click the scan QR code button to scan the QR code on the side of the flowmeter head or calibration certificate. After successful scanning, the flow meter signal icon turns green, indicating that it is in a read-write state. Set the inner diameter of the pipeline and the measuring medium: Enter the settings interface and click on flow rate settings. By modifying the corresponding inner diameter of the pipeline and measuring medium, the current real-time standard flow rate can be read. 6、 Explosion proof plug-in thermal mass flowmeter with Bluetooth connection: Place the debugging computer within a 5-meter range of the flowmeter, search for and connect the Bluetooth of the flow meter. Open the settings software: Open the flowmeter settings software, select Bluetooth connection, search and connect the device. Set the inner diameter of the pipeline: Click Connect on the main interface, and then click Flow Settings after connecting. Set the inner diameter of the pipeline according to the actual inner diameter (inner diameter=outer diameter - wall thickness * 2), and default other parameters. Communication Settings: Click on Communication Setting and enter parameters such as slave address and baud rate to ensure consistency with the diagram. After completing the installation and setup according to the above steps, the plug-in thermal mass flowmeter can work normally and accurately measure the flow rate.
