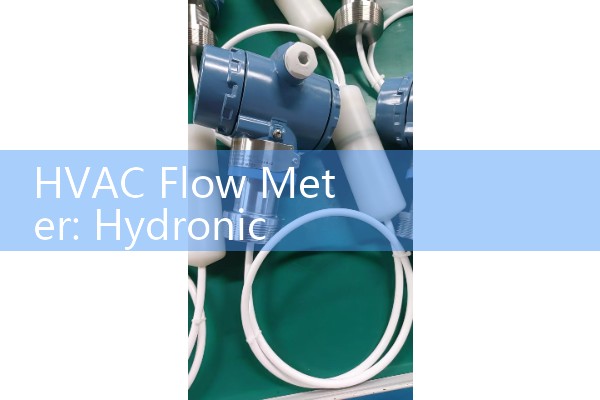

HVAC Flow Meter: Hydronic System Balancing and BTU Energy Calculation Tools
Quick Answer: Silver Automation Instruments supplies electromagnetic and ultrasonic flow meters ready for hydronic balancing and BTU energy calculation. You combine one flow meter with two PT100 temperature probes and an energy calculator to read real time kW or BTU. Send us your pipe size, fluid type, glycol percentage, and the signal you need (4-20 mA, pulse, Modbus) and we will size a complete set.
Why Hydronic System Balancing Is More Than Just Valves
Balancing valves only set a fixed resistance. They cannot show you actual flow distribution at part load. In a chilled water plant you need live flow data to spot low delta T syndrome, clogged strainers, or oversized pumps. Electromagnetic and ultrasonic flow meters give you L/min or m3/h right on the LCD, or send it to the BMS. Without this data many facility teams run chillers inefficiently for years. We have seen this in hotels, district cooling plants, and pharmaceutical HVAC loops across Thailand, Brazil, and the UAE.
Magnetic Flow Meters for Chilled and Hot Water
Silver Instruments SMT-2000 electromagnetic flow meters work on conductive water from DN15 up to DN600. Even water with 30 percent propylene glycol easily meets the minimum 5 uS/cm conductivity. The meter has no moving parts and creates almost zero pressure drop. A hard rubber or PTFE liner handles temperatures from -20 degree Celsius to 150 degree Celsius. Output options include 4-20 mA, open collector pulse, and RS485 Modbus RTU. Many contractors pick the SMT-2000 because it installs between flanges and the empty pipe detection prevents false readings during system drain down. For hydronic balancing you can daisy chain multiple meters on a single Modbus trunk and pull all flow values into one PLC.
Ultrasonic Flow Meters for Retrofit HVAC Jobs
When you cannot shut down the system, ultrasonic clamp-on meters are the practical choice. Silver Instruments SUT-400 strap-on sensors fit outside copper, steel, or stainless pipe from DN20 to DN300. Installation takes about 20 minutes per point. Accuracy stays within plus minus 1.5 percent of reading. The meter includes a built in data logger and can output flow rate via 4-20 mA or Modbus. Here is the thing. Old pipe surfaces need proper cleaning and coupling gel. Once the signal stabilizes you get repeatable flow data. Pair the SUT-400 with clamp-on PT100 probes and the BTUCAL-10 calculator for a complete BTU metering kit without cutting a single pipe.
BTU Energy Calculation: Flow Plus Delta T
Thermal energy is simply mass flow multiplied by specific heat and temperature difference. Silver Instruments BTUCAL-10 energy calculator connects to any flow meter with pulse or Modbus output and two matched PT100 sensors. You install the flow meter in the return line and place PT100 probes in supply and return pipes. The calculator displays instant kW or BTU, totalized
Real Example: A Chiller Plant in Vietnam
Last year a facility manager in Ho Chi Minh City asked for help balancing a 1,200 RT chilled water system. The plant served four office towers and delta T hovered around 2.8 degree Celsius. Our team proposed six SMT-2000 electromagnetic flow meters on DN150 and DN200 mains. After installing the meters and adjusting chilled water valves based on real flow data, delta T reached 5.4 degree Celsius. The electricity bill dropped roughly 11 percent. This kind of result is normal when you stop guessing and start measuring.
How to Order the Right HVAC Flow Meter
Do not guess the pipe size. Measure outer diameter and wall thickness. Tell us your fluid: pure water, glycol mix at 20 percent, brine, or treated water. Share the operating temperature range and typical pressure. If you want energy metering, also confirm whether you need a stand alone calculator or want the flow meter to compute energy internally. We will recommend the right liner, electrode material, and mounting kit. Send these details to [email protected] or call us at +86-25-68650347. You can also reach us on WhatsApp at +86-25-52155837 or WeChat at +86 15365082610. Data sheets and CAD files are on flow-meter.com.au and flow-meter.com.au.
Frequently Asked Questions
Do I need two flow meters for a BTU measurement? No. One flow meter is enough because mass flow is constant in a closed loop. You need two matched PT100 sensors to capture the temperature difference across the heat exchanger.
Which fluid does an electromagnetic flow meter need? The fluid must be conductive, minimum 5 microsiemens per centimeter. Clean water, well water, and glycol mixtures all meet this requirement. Deionized water and pure oils do not.
Can I use an ultrasonic clamp-on meter on old steel pipe? Yes, but the pipe wall must transmit ultrasound. You need to remove paint and rust, smooth the surface, and use proper coupling gel. Silver Instruments SUT-400 diagnostics show signal strength so you know the installation quality before logging data.
What output signals does the BTUCAL-10 support? The calculator outputs Modbus RTU and BACnet MSTP natively. You also get two pulse outputs for energy and flow totalization and a 4-20 mA analog output for instant power.
How fast can Silver Instruments deliver HVAC flow meters to the Middle East or Latin America? Standard models ship within five working days. For large orders or customized pressure ratings we typically ship in two to three weeks. Air freight arrives at major ports in the UAE, Saudi Arabia, Mexico, and Brazil within five to seven days.
