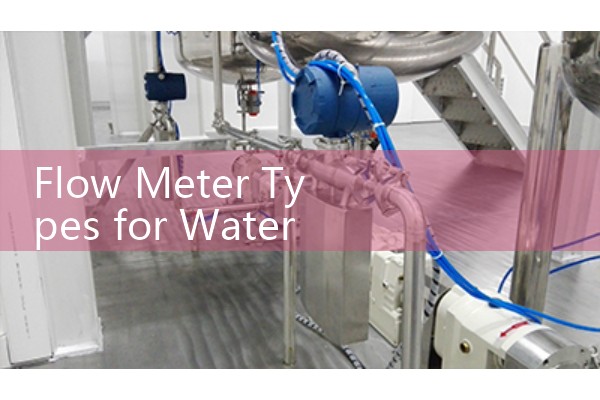

Flow Meter Types for Water: Comparing Magnetic, Ultrasonic, Turbine, and Vortex Tech
Quick Answer: Magnetic flow meters deliver high accuracy for conductive water and wastewater. Ultrasonic clamp-on meters work well for large pipes and non-conductive fluids. Turbine meters give you a budget-friendly choice for clean water, and vortex meters handle hot water and steam condensate with no moving parts.
Magnetic Flow Meters for Water and Wastewater
Magnetic flow meters rely on conductivity. The water or wastewater needs at least 5 microS/cm. Because there are no moving parts and no obstructions inside the pipe, these meters tolerate sludge, slurry, and chemical dosing lines. Silver Automation Instruments supplies the SMF series in sizes from DN15 up to DN2000. Standard accuracy is 0.5% of reading, and the liner choices include PTFE, hard rubber, and PFA. Output is 4-20 mA HART, pulse, or RS485 Modbus. We have versions certified for ATEX Zone 1 and IP68 submersion. An electrode material like Hastelloy C extends life in seawater or brine. In 2024, a wastewater plant in Thailand replaced 12 old turbine meters with our SMF electromagnetic meters on DN150 sludge lines. The operators reported zero drift after six months and only one electrode cleaning cycle. If you measure potable water with a conductivity above 20 microS/cm, a compact SMF with sanitary tri-clamp ends and a PTFE liner is a safe pick. Most engineers skip the grounding rings on plastic pipes, but in practice we recommend them to suppress electrical noise. Send us your pipe size and liner preference and we will size the right model.
Ultrasonic Water Flow Meters for Large Pipes and Non-Conductive Fluids
Ultrasonic meters do not need conductivity. This matters for deionized water, demineralized water, and RO permeate. Clamp-on transducers install outside the pipe, so you avoid cutting the line or stopping flow. Silver Instruments offers the SUF series clamp-on and insertion ultrasonic flow meters for pipes from DN25 to DN4000. Accuracy is 1% of reading on clean water, and we pair the electronics with transducers rated for temperatures up to 180 degree C. A customer in Vietnam asked us to measure cooling water on a 250 mm carbon steel pipe that could not be shut down. We supplied two clamp-on SUF units and finished commissioning in under three hours. For permanent installations on seawater intake lines at a desalination plant in Oman, we used insertion transducers with hot-tap access. Keep in mind that high solid loads and entrained air bubbles weaken the ultrasonic signal. In those cases, a magnetic flow meter works better. Because ultrasonic meters have no pressure drop, they fit gravity-fed lines and low-pressure irrigation canals across Australia and East Africa. We can deliver the SUF with a local display, data logger, and Modbus RTU for remote monitoring.
Turbine Flow Meters for Clean Water and Cost-Sensitive Projects
Turbine meters measure flow with a rotating blade. They suit clean water, dosing, and irrigation where your budget is tight. The moving parts require filtration and periodic recalibration, but the upfront price is hard to beat. Our STF turbine flow meter starts at DN10 and goes up to DN600. We build them in brass, 316L stainless steel, or plastic bodies with pulse output or 4-20 mA. Accuracy reaches 0.5% of reading on water, and the turndown ratio is 10:1. Last year we shipped over 200 STF meters to farming cooperatives in Kenya and Nigeria for borehole water accounting. A food-grade version with sanitary connections and FDA-approved seals is available for bottling lines. Most engineers replace the bearings every 12 to 18 months in hard water service. We stock spare rotor kits in our Sydney warehouse for quick dispatch to Pacific Island customers. If your water carries sand or scale, turbine meters are not the right choice. Look at magnetic or vortex instead.
Vortex Flow Meters for Hot Water, Chilled Water, and Steam Condens_600x400.jpg)
Vortex meters read the frequency of vortices shed by a bluff body. No moving parts in the flow stream means high reliability on hot water, chilled water, and steam condensate return lines. Our SVF vortex flow meter handles media from minus 40 to plus 250 degree C. We supply inline models from DN15 to DN300 with integrated temperature and pressure compensation for mass flow of steam. A district heating operator in Chile installed seven SVF meters on DN100 hot water mains and cut maintenance costs because they no longer had turbine bearing failures. Vortex meters need a minimum Reynolds number to generate a stable signal, so at very low flows the reading cuts out. The pressure loss is typically lower than an orifice plate. For a 50 mm line at 30 m3/h, you will see about 0.2 bar permanent pressure drop. Both 4-20 mA HART and pulse outputs are standard. When you need to measure steam and feedwater with the same meter family, vortex is a practical choice. Because the sensor is isolated, we often install SVF meters on ammonia brine chillers in chemical plants without corrosion issues.
How to Pick the Right Water Flow Meter
The decision tree is simple. If the water is conductive and may carry solids, magnetic is your best bet. If the pipe is large and you cannot cut it, clamp-on ultrasonic is the answer. If the water is clean, the budget rules, and you can schedule yearly bearing checks, turbine works. If the temperature exceeds 100 degree C or you also need to measure steam condensate, choose vortex. In practice we ask customers four data points: fluid type, pipe size (DN), operating pressure in bar, and temperature in degree C. With those, we can give you a specific model recommendation and a delivery time. Silver Automation Instruments keeps popular magnetic and turbine meters in stock for fast dispatch to Southeast Asia, Oceania, the Middle East, and Latin America.
Frequently Asked Questions
Can a magnetic flow meter measure deionized or ultrapure water?
No, because conductivity is too low. You need at least 5 microS/cm. For ultrapure water, an ultrasonic flow meter is the standard solution. Our SUF clamp-on meter is widely used in semiconductor rinse water loops and pharmaceutical WFI systems.
What output signals do Silver Instruments water flow meters provide?
All models offer 4-20 mA HART, pulse, and RS485 Modbus as standard or optional. You can integrate them directly with PLC, SCADA, or our paperless recorders. Specify your preferred protocol when you send the inquiry.
Are ultrasonic flow meters affected by air bubbles and suspended solids?
Yes. Clamp-on ultrasonic meters need a clean acoustic path. If your water carries more than 1% solids or entrapped gas, the signal becomes unstable. In that case we recommend a magnetic flow meter with a wear-resistant liner.
Can I use a turbine flow meter for drinking water systems?
Yes, if the water is filtered and free of scale. Our STF turbine meters have wetted parts options that comply with NSF/ANSI 61. We have supplied them to bottling plants in Fiji and municipal transfer stations in Mexico.
Do vortex flow meters cause a big pressure drop on water lines?
They create a permanent pressure loss similar to a smaller orifice plate. At typical water velocities the loss is modest. For a 50 mm line at 25 m3/h, you will measure around 0.15 to 0.2 bar. We can calculate the exact figure if you share your line pressure and pipe schedule.
